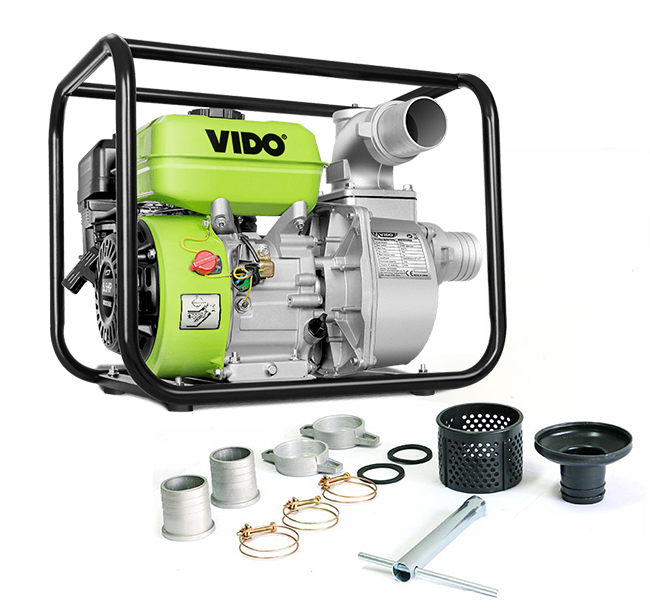

Introduction and maintenance of gasoline water pump
2022-10-12
Gasoline water pump is a centrifugal pump, consisting of water pump and bracket, low cost, light weight, easy maintenance, also has the advantages of low manufacturing cost and less noise.
2. Body system: including cylinder head, cylinder block, crankcase, muffler, shield, etc.
3. Fuel system: including fuel tank, switch, filter, sediment cup and carburetor, etc.
4. Cooling system: including cooling fan, induced air cover, etc. Some backpack spray powder machine in the large fan after the worm shell to open the cooling port, from the air cover to lead the cooling airflow, there is no longer a separate cooling impeller.
5. Lubrication system: two-stroke gasoline engine using a combination of gasoline and lubricating oil lubrication and oil supply system combined. Four-stroke gasoline engine lubrication and oil supply separate, crankcase with lubricating oil dipstick.
6. Gas distribution system: The four-stroke gasoline engine consists of intake and exhaust valves, rocker arms, pushrods, tappets and camshafts. Two-stroke gasoline engine does not have intake and exhaust valves, but inlet, outlet and air exchange ports on the cylinder block, using the up and down movement of the piston to open or close the air holes.
7. Starting system: There are two kinds of structures, one is composed of starting rope and simple starting wheel; the other is rebound starting structure with spring combined with teeth and shield, etc.
8. Ignition system: including magneto, high voltage wire, spark plug, etc. Among them, there are two kinds of magneto: contact type with jump fire frame structure and contactless electronic ignition line.
In the cylinder block of the car engine, there are several waterways for cooling water circulation, and the radiator placed in the front of the car (commonly known as the water tank) is connected through the water pipe, constituting a large water circulation system, in the upper outlet of the engine, equipped with a car water pump, driven by the fan belt, the hot water pump in the engine block waterway, the cold water pumped into. Next to the pump there is a thermostat, when the car is just started (cold), do not open, so that the cooling water does not go through the tank, only in the engine circulation (commonly known as small cycle), to be the engine temperature reaches 95 degrees or more, open, the hot water in the engine is pumped into the tank, the car forward when the cold wind blowing through the tank, take away the heat.
Gasoline water pump maintenance
1、Change the engine oil
When you use it for the first time, change the oil for the first time after the first month or after 20 hours of use, and after that, change it every six months or after 300 hours of use.
2、Air filter maintenance
Clean the filter element with non-combustible or high ignition solution and dry it thoroughly; then dip the filter element into clean engine oil and squeeze out the excess oil, then re-install it.
3、Spark plug maintenance
Visually check whether the spark plug has obvious wear or insulation ring rupture with gap, if there is a problem, need to replace the new spark plug. Use the plug gauge to measure the spark plug gap, the gap is: 0.70-0.80 mm, does not meet the need to adjust the electrode to correct the gap and remove the carbon.
4、Storage
If the gasoline engine water pump is not used for a long time, the last time you stop using it, first turn off the carburetor inlet valve and let the gasoline engine water pump turn off automatically (if it is not used for a long time, the gasoline in the carburetor will damage the carburetor). Clean the impeller chamber by pouring water from the inlet pipe until the sediment is removed. Finally, put the remaining fuel in the fuel tank into a special container for proper storage. Store the whole machine in a cool, ventilated and dry place.
Composition of gasoline water pump.
1. Crankshaft connecting rod system: including piston, connecting rod, crankshaft, needle bearing, oil seal, etc.2. Body system: including cylinder head, cylinder block, crankcase, muffler, shield, etc.
3. Fuel system: including fuel tank, switch, filter, sediment cup and carburetor, etc.
4. Cooling system: including cooling fan, induced air cover, etc. Some backpack spray powder machine in the large fan after the worm shell to open the cooling port, from the air cover to lead the cooling airflow, there is no longer a separate cooling impeller.
5. Lubrication system: two-stroke gasoline engine using a combination of gasoline and lubricating oil lubrication and oil supply system combined. Four-stroke gasoline engine lubrication and oil supply separate, crankcase with lubricating oil dipstick.
6. Gas distribution system: The four-stroke gasoline engine consists of intake and exhaust valves, rocker arms, pushrods, tappets and camshafts. Two-stroke gasoline engine does not have intake and exhaust valves, but inlet, outlet and air exchange ports on the cylinder block, using the up and down movement of the piston to open or close the air holes.
7. Starting system: There are two kinds of structures, one is composed of starting rope and simple starting wheel; the other is rebound starting structure with spring combined with teeth and shield, etc.
8. Ignition system: including magneto, high voltage wire, spark plug, etc. Among them, there are two kinds of magneto: contact type with jump fire frame structure and contactless electronic ignition line.
In the cylinder block of the car engine, there are several waterways for cooling water circulation, and the radiator placed in the front of the car (commonly known as the water tank) is connected through the water pipe, constituting a large water circulation system, in the upper outlet of the engine, equipped with a car water pump, driven by the fan belt, the hot water pump in the engine block waterway, the cold water pumped into. Next to the pump there is a thermostat, when the car is just started (cold), do not open, so that the cooling water does not go through the tank, only in the engine circulation (commonly known as small cycle), to be the engine temperature reaches 95 degrees or more, open, the hot water in the engine is pumped into the tank, the car forward when the cold wind blowing through the tank, take away the heat.
Gasoline water pump maintenance
1、Change the engine oil
When you use it for the first time, change the oil for the first time after the first month or after 20 hours of use, and after that, change it every six months or after 300 hours of use.
2、Air filter maintenance
Clean the filter element with non-combustible or high ignition solution and dry it thoroughly; then dip the filter element into clean engine oil and squeeze out the excess oil, then re-install it.
3、Spark plug maintenance
Visually check whether the spark plug has obvious wear or insulation ring rupture with gap, if there is a problem, need to replace the new spark plug. Use the plug gauge to measure the spark plug gap, the gap is: 0.70-0.80 mm, does not meet the need to adjust the electrode to correct the gap and remove the carbon.
4、Storage
If the gasoline engine water pump is not used for a long time, the last time you stop using it, first turn off the carburetor inlet valve and let the gasoline engine water pump turn off automatically (if it is not used for a long time, the gasoline in the carburetor will damage the carburetor). Clean the impeller chamber by pouring water from the inlet pipe until the sediment is removed. Finally, put the remaining fuel in the fuel tank into a special container for proper storage. Store the whole machine in a cool, ventilated and dry place.
